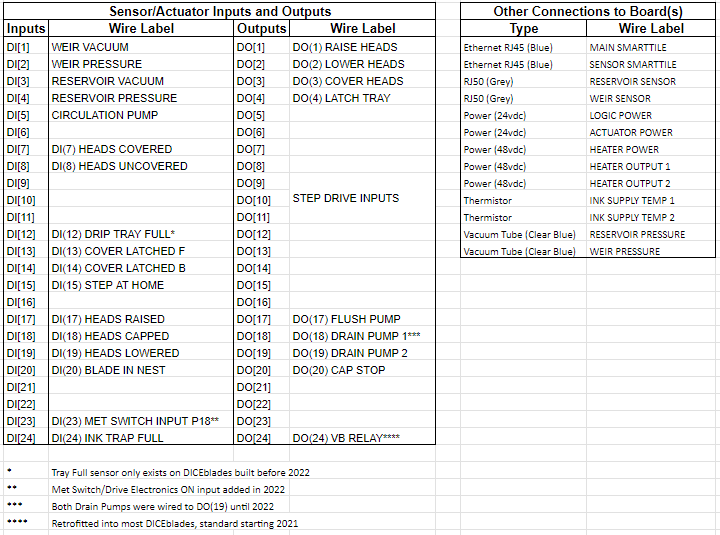

See attached for schematics, see table below for cables plugged into the DICEblade Control PCB Assembly (00-33003).
Pic below shows all cables plugged in.
Note that some changes have been made to wiring over the years, so feel free to reach out to PPSI with any questions!
